Product Description

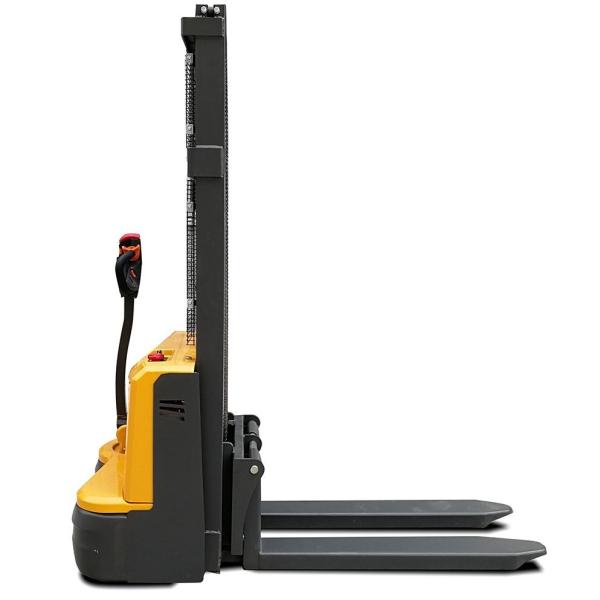

2m 3m 4000mm Full Electric Walkie Stacker 1200kg 1.2t 1.5 ton Electric Pallet Stacker with Operating handle
The full electric walkie stacker stands out for its exceptional benefits. It offers unparalleled maneuverability in tight spaces, while its battery-driven system ensures extended uptime with minimal emissions. The stacker's low maintenance requirements and simple operation make it a cost-effective and environmentally friendly solution, setting it apart from traditional alternatives.
Main Features
1) Using Curtis controller,which can be serviced by any forklift service company around the world.
2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.
3) Maintenance-free batteries,no need to add water.
4)High strength fork
Specification
| MODEL | | | CDDW10 CDDW15 |
| Features | Drive system | | | Battery |
| Driving mode | | | Walkie |
| Load Capacity | Q | KG | 1000 |
| Load Center | C | MM | 500 |
| Weight | Weight(With battery) | | KG | 480/495/515/535 |
| Wheels | Material | | | PU |
| Size | Lifting Height | H3 | MM | 1600/2000/2500/3000 |
| Lowest Mast | H1 | MM | 2080/1580/1830/2080 |
| Max.Height when operating | H4 | MM | 2080/2730/3230/3730 |
| Min.Height of Fork | H13 | MM | ≤90 |
| Length | L1 | MM | 1770 |
| Width | B1 | MM | 850 |
| Fork Length | L | MM | 1070 |
| Wheelbase | Y | MM | 1250 |
| Fork Outside Width | B5 | MM | 680 |
| Fork Inside Width | | MM | 305 |
| Min.Turning Radius | WA | MM | 1390 |
| Performance | Driving Speed (Empty/Full Load) | | MM/S | 5.0/5.0 |
Lifting Speed (Empty/Full Load) | | MM/S | 140/135 |
Descending Speed (Empty/Full Load) | | MM/S | 150/155 |
Max.Gradient (Empty/Full Load) | | ° | 7/5 |
| Brake | | | Electromagnetic brake |
| | Driving Motor | | KW | DC/0.75 |
| Lifting Motor | | KW | DC/2.2 |
| Battery | Capacity | | V/Ah | 24/80Ah |
