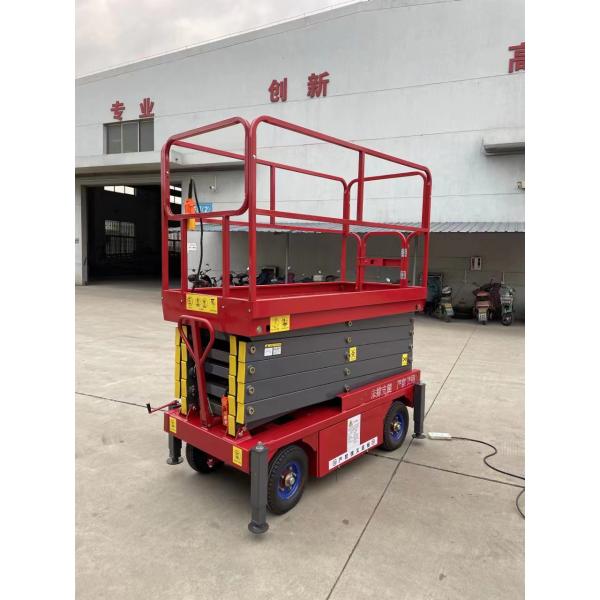

High-Capacity 320kg Double Scissor Lift With 12m Reach - Reliable And Safe Hydraulic Electric Aerial Platform
This lift is renowned for its reliability and safety, boasting a 320kg load capacity and a 12-meter lifting height, making it an ideal hydraulic electric aerial work platform. Its design particularly emphasizes user safety and operational convenience, suitable for various industrial and commercial high-altitude tasks, including repairs, installations, cleaning, and maintenance.
The lift features a double scissor structure, providing exceptional stability and a more spacious working area. With a maximum load capacity of 320kg, it can accommodate multiple workers and their tools, ensuring an efficient workflow. The 12-meter lifting height allows operators to easily reach high places and complete various complex tasks.
The hydraulic system is the core of this lift, utilizing high-quality hydraulic cylinders and pumps to ensure smooth and reliable lifting movements. The electric drive system simplifies operation, with the platform's elevation controlled by simply pressing a button, significantly enhancing work efficiency.
In terms of safety, this lift is equipped with various safety devices, including an anti-fall system, an emergency stop button, and an overload protection device. The anti-fall system automatically locks the platform in place if it tilts or is overloaded, preventing accidental falls. The emergency stop button allows for immediate halting of the lift in emergencies, ensuring personnel safety. The overload protection device prevents equipment damage due to overloading.
| Model | MX580S | MX600SN | MX800SN | MX800S | MX1000S | MX1200S |
| S.W.L | 230kg | 230kg | 230kg | 450kg | 320kg | 320kg |
| S.W.L on Extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max.Workers Number | 2 | 2 | 2 | 2 | 2 | 2 |
| Working height max | 7.8m | 8m | 10m | 10m | 12m | 13.8m |
| Platform height max | 5.8m | 6m | 8m | 8m | 10m | 11.8m |
| Overall Length | 1.81m | 2.43m | 2.43m | 2.43m | 2.43m | 2.43m |
| Overall Width | 0.76m | 0.81m | 0.81m | 1.15m | 1.15m | 1.15m |
| Overall Height( Rails Up) | 2.16m | 2.18m | 2.3m | 2.31m | 2.42m | 2.55m |
| Overall Height( Rails Down) | 1.82m | 1.85m | 1.87m | 1.76m | 1.91m | 2.03m |
| Platform size(LxW) | 1.67m*0.74m | 2.27m*0.81m | 2.27m*0.81m | 2.27m*1.12m | 2.27m*1.12m | 2.27m*1.12m |
| Platform extension size | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m |
| Ground Clearance ( Stowed) | 0.09m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m |
| Ground Clearance(Raised) | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m |
| Wheelbase | 1.36m | 1.87m | 1.87m | 1.87m | 1.87m | 1.87m |
| Turning radius (inside) | 0m | 0m | 0m | 0m | 0m | 0m |
| Turning radius (outside) | 1.64m | 2.10m | 2.10m | 2.10m | 2.10m | 2.10m |
| Lift/Drive Motor | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw |
| Travel Speed( Stowed) | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h |
| Travel Speed( Raised) | 1km/h | 1km/h | 1km/h | 1km/h | 1km/h | 1km/h |
| Raise/Lower time | 18/22sec | 35/25sec | 40/30sec | 40/30sec | 60/40sec | 70/45sec |
| Power source | 4*6V/210Ah | 4*6V/225Ah | 4*6V/225Ah | 4*6V/225Ah | 4*6V/240Ah | 4*6V/260Ah |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% |
